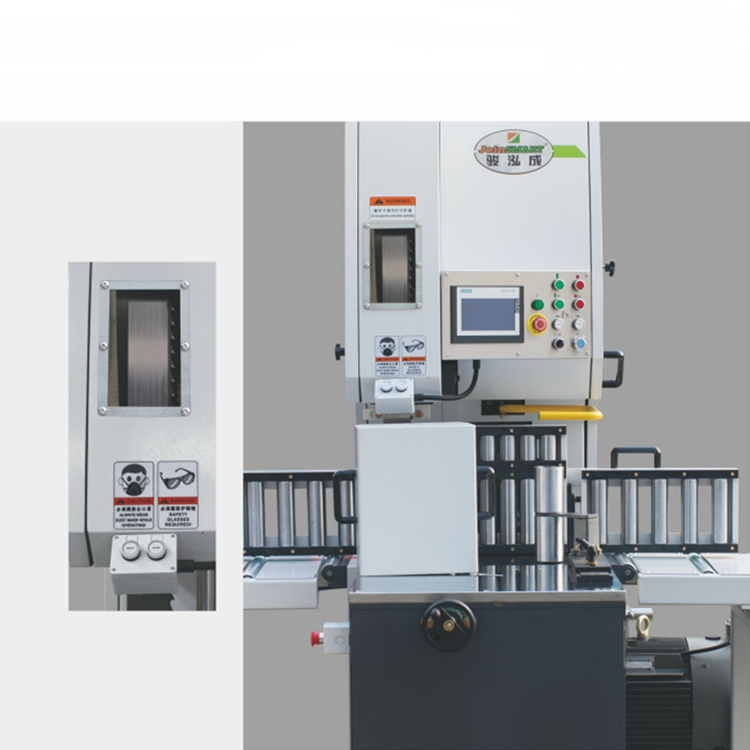

Shenzhen DH Brand Vertical Band Saw Machine For Band Saw Blade

Category:


Products Description

Hfd7e7acc41cf4565b3408065c673f7b6c

Specification

Max sawing height
370mm
Min sawing thickness
3mm
Max distance between feeding wheel and leaning grid
510mm
Max distance between feeding wheel and saw belt
210mm
Max distance between saw band and leaning grid
300mm
Tilting angle against leaning grid
0-45°
Max feeding speed
0-40m/min
Saw wheel diameter
916mm
Saw wheel width
80/90mm
Saw blade size
5700*80mm
Saw blade size
125-140kg/cm2
Sawing motor power(frequency conversion)
15kw
Feeding motor power(frequency conversion)
0.75kw
Saw wheel swing angle motor power
0.37kw
Automatic feeder motor power(optional)
0.75kw
Total power
17kw(optional: 17.75kw)
Voltage
380V
Air pressure
0.7pa
Overall dimension
3696(1600)*2250*2414mm
Weight
3200kg

Manufacturing Technique

H0467a9bdc1e5408e9b1c62db245be310Q
The leaning grid can be tilted at any angle within range of 0-45° to saw the wood with different process requirements.

H45c715addcac445094497d0f2fd6249fJ
It is equipped with feeding wheels of various shapes, which can be used according to the sawing process.

Hc6c1afb3828540e9a3df2f36b3cad5a4l
Select first-line high-end brand electronic devices at home and abroad.For example,PLC programmable controller, touch screen,frequency converter,AC contactor,air switch,etc.adopt Siemens,hailip and other brands,and motors and other electrical components adopt domestic famous brands.High quality and high-end configuration enables the machine to play a stronger and more stable performance.

H6ee0e4fd8ce6429eae50b572fb8e87d1L
Figure4: Saw blade tensioning system automatic pressure replenishment
Figure5/6: Spray atomization system automatic operation.

Company Profile

Shenzhen Dehuai Cutter (DH)

Is a professional manufacture engaged in various alloy frame saw blade, band saw blade. We have 22 years' experience in manufacture and sales. The main products are band saw blade, frame saw blade, drill bit, milling cutter and carbide knife. And acting various types of band saw machine and grinding machine.

H76cfb02a424d49dca306db56a73ff647P
H705c988beadd45ab8013a1f751ba28805
Hc91438d49bee4d4d870d0f04f11a71dc2

Ha2d4bd4a07e7454aac2c82418c33bb16p
H8f9641a51874480c966e4b9fa38c9519p
Hbe9c36347a0c431b800bce431fa607d62

Product packaging

Packaging: In a container or any other packaging as your request.Shipping: Usually we will quote you the most reasonable shipping method according to your country, good types, weight and requested delivery time.We shall appreciate if you could write us details of your order quantity, country, sea port/air port before you send us inquiry.In this way we can offer you the best and most accurate price.Delivery Date: 21-30 days after order confirmed.

Ha94cc78185fc42eda9f3b3eba5421d2fz

Exhibition

We have many domestic and abroad exhibition every year around the world, we pursue the long term cooperation, so quality you would rest assured.

Hadd1d517c933460b93a66278706a6ac3o

FAQ

Q: Are you trading company or manufacturer ?A: We are factory.Q: How long is your delivery time?A: Generally it is 5-10 days if the goods are in stock, or it is 15-20 days if the goods are not in stock, it is according to quantity.Q: Do you provide samples ? is it free or extra ?A: Yes, we could offer the sample for free charge but do not pay the cost of freight.Q: What is your terms of payment ?A: Payment<=USD1000, 100% in advance. Payment>=USD1000, 30% T/T in advance, balance before shipment.
